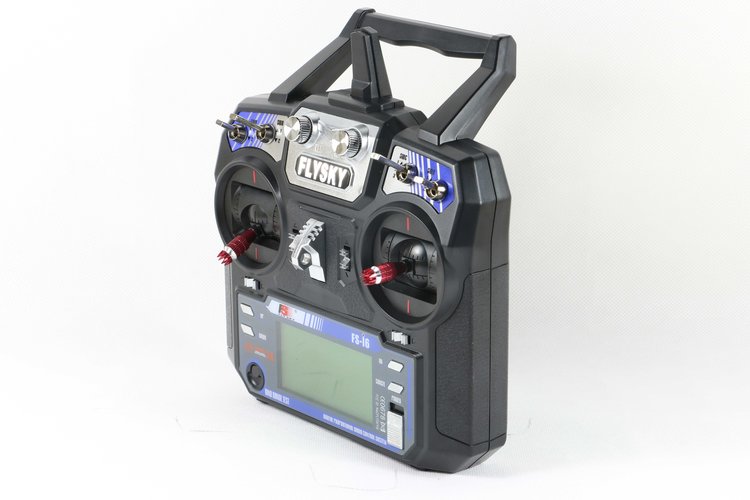

FLYSKY FS-I6X TRANSMITTER AND RECEIVER SET

FlySky Introduces its newest 6 channel 2.4GHz system, the FS-i6X which is an upgrade to the FS-i6.

Adopt AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity.

Receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel hopping frequency, hop between 16 channels (32 for Japanese and Korean version) to reduce interference from other transmitters.

Unique ID recognition system, each transmitter and receiver has its own unique ID to prevent interference.

Low power consumption, consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

The FS-X6B supports 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

FS-X6B receiver fits for FS-i10, FS-i8, FS-i6, FS-i6s, FS-i6x, FS-i4, FS-i4x etc. FS series rc transmitter.This radio system uses a high gain and high quality multi directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long range radio transmission.

Each transmitter has a unique ID, when binding with a receiver, the receiver saves that unique ID and can accept only data from the unique transmitter. This avoids picking another transmitter signal and dramatically increases interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has an automatic identification function, which can switch automatically from current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has a built-in multiple channel coding and error-correction, which improves the stability of communication, reducing the error ratio and extending the reliable transmission distance.

FS-i6X Transmitter Specifications:

Channels: 6-10 (default 6)
Model type: Fixed-Wing/Glider/Helicopter/Quadcopter
RF Range: 2.408-2.475GHz
RF power: <20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz system: AFHDS 2A / AFHDS
Modulation type: GFSK
Stick resolution: 4096
Low voltage warning: <4.2V
DSC Port: PS/2 Port
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: About 400g
Power: 4 * AA battery (not included)
Display: STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlight
Size: 190 * 174 * 89mm
On-Line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

FS-iA6B Receiver Specifications:

Brand Name: Flysky
Item Name: FS-iA6B
Channel: 6
Frequency Range: 2.4055--2.475GHZ
Band Width Number: 140
Transmitting Power: ≤ 20dBm
RF Receiver Sensitivity: -105dbm
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Dimension: 47 x 26.2 x 15mm
Weight: 14.9g
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Glider / Helicopter
Compatible Transmitter: Compatible with FS-i4,FS-i6(X),FS-i10,FS-GT2E,FS-GT2G

Includes:

1 x FS-i6 2.4G 6Ch Transmitter
1 x FS-i6 6Ch Receiver
1 x Data USB Cable (for updating software)
1 x Sticker Set
1 x User Manual

Requires:
4 x AA Batteries
