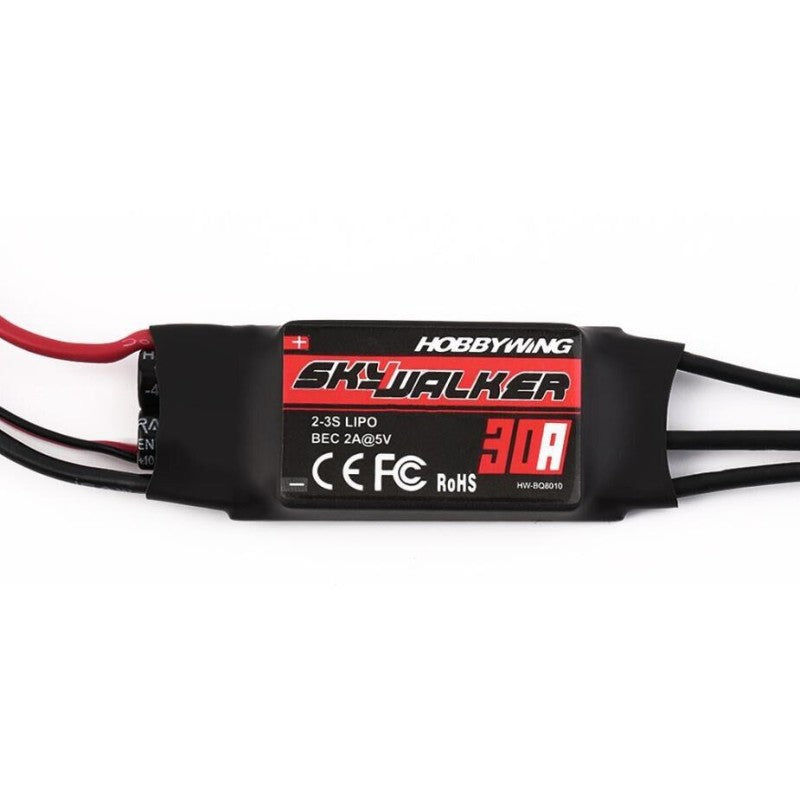

HOBBY WING SKYWALKER 30A ESC

Hobbywing Skywalker 30A brushless electronic speed controller with 2A 5V BEC supply suitable for use with most RC Arcraft including helis, fix wing, and multicopters.

Specification:

Output power: constant current 30A, 40A Burst (not more than 10 seconds)
Power input: 2-3S lithium battery or section 5-9 cells ni-mh/ni-cd battery pack
BEC output: 5 v @ 2A (linear voltage regulation mode)
Maximum speed: 2 pole motor 210000 r/min, 6 pole motor 70000 r/min BLM, 12 pole 35000 r/min BLM
Size: 68 mm (length) * 25 mm (width) * 8 mm (high)
Weight: 37 g


Product Features:

Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
User programmable.
Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
Compatible with Lipo and NiMH battery.
Timing can be changed to be suitable for different brushless motors.
Full protection: Low voltage cut off protection / Over-heat protection / Throttle signal loss protection.
