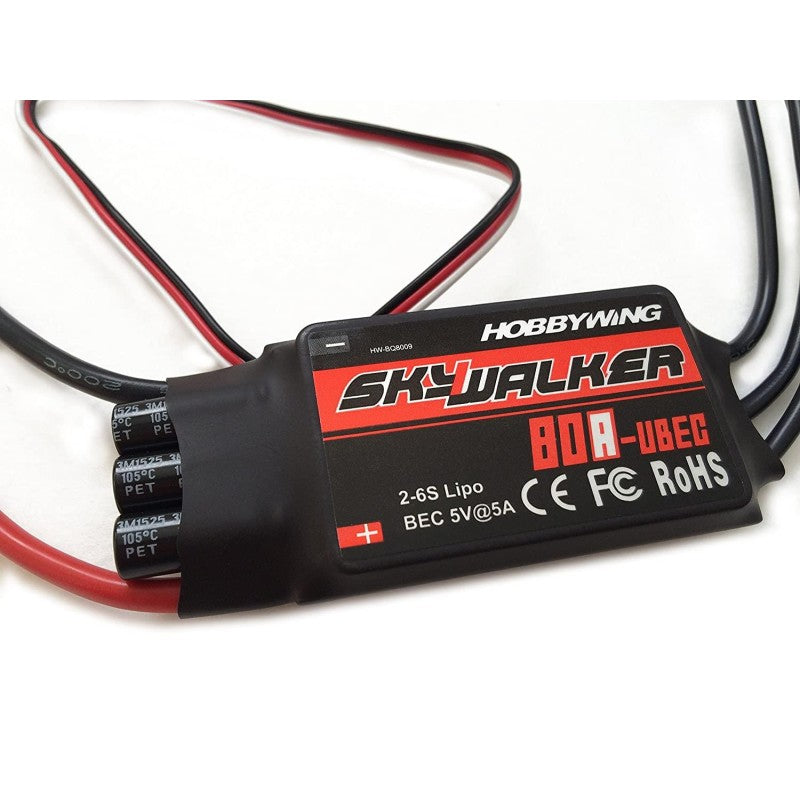

HOBBY WING ESC 80A (SKY WALKER)

Specification

• Output: Continuous 80A, Burst 100A up to 10 Secs.
• Input Voltage: 2-6S LiPO
• BEC: Switch mode BEC 5A/5V
• Max Speed: 210,000rpm for 2 Poles brushless motor, 70,000rpm for 6 poles brushless motor, 35,000rpm for 12 poles brushless motor.
• Connectors: 4mm bullet connectors and T-Connector pre-soldered.
• Size: 86mm (L) * 38mm (W) * 12mm (H).
• Weight: 82g.

Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:

• Brake Setting: brake enabled / brake disabled.
• Battery Type: Li-xx (Li-ion or LiPO) / Ni-xx (NiMH or NiCd).
• Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
• Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
• Start Mode: normal / soft / very soft.
• Timing: low / medium / high.
• LiPO Battery Cells: Auto calculate / Set the cells number manually.
• Reset: the programmable items to its default setting.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
