DJI 04 Air Unit Lite

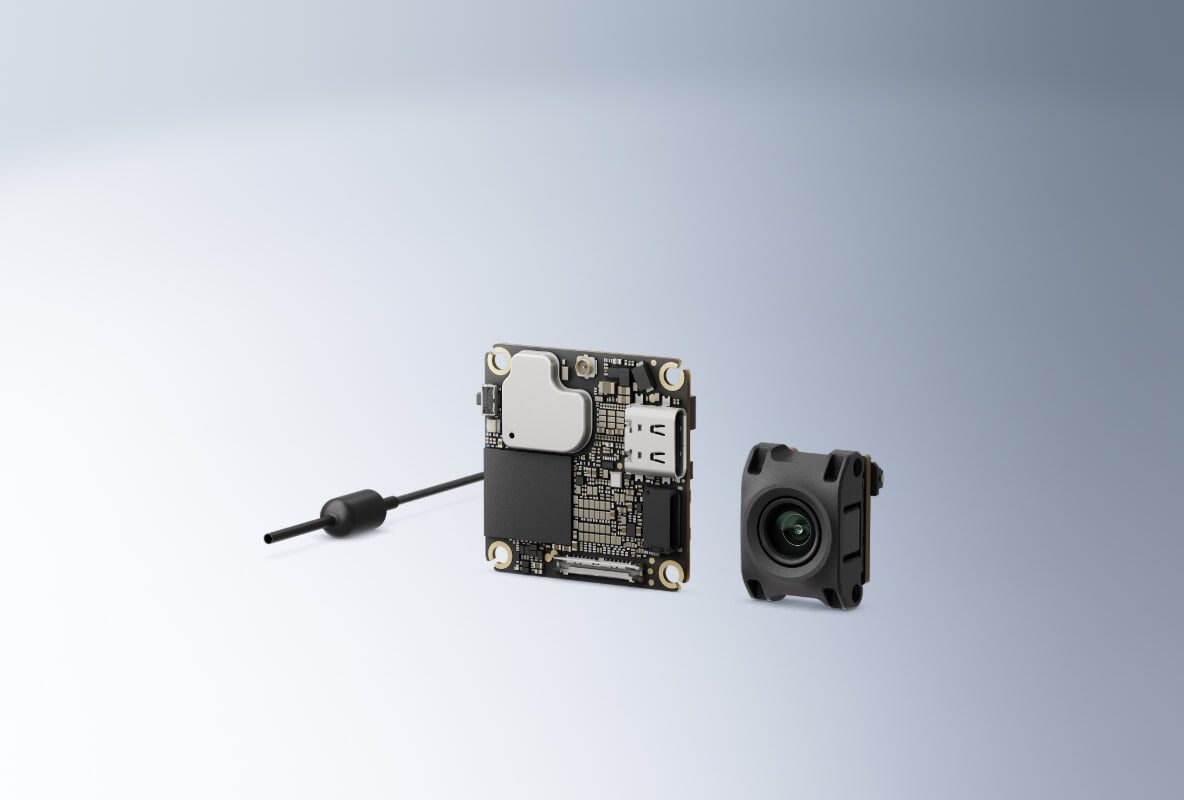

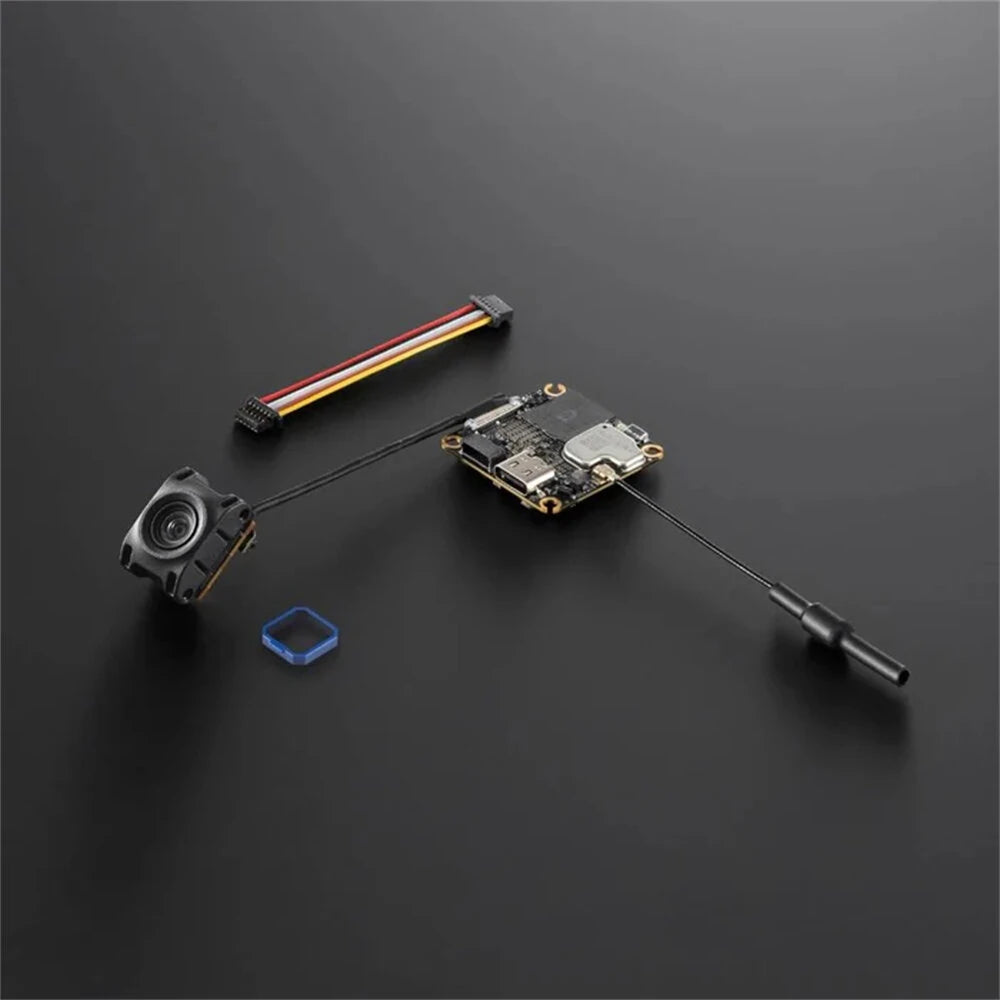

DJI O4 AIRUNIT

Weight:

AirUnit (camera module excluded): Approx. 5.1 g

AirUnit (camera module included): Approx. 8.2 g*

Antenna: Approx. 0.75 g

The lens mount is not included. With the lens mount, the weight is 9.2 grams.

Dimensions:

Transmission Module: 30×30×6 mm (L×W×H)

Camera Module: 13.44×12.36×16.50 mm (L×W×H)

Coaxial Cable: 50 mm

3-in-1 Cable: 50 mm

Antenna: 80 mm

VTX Mounting Pattern:

20x20mm

VIDEO TRANSMISSION

Operating Frequency:

5.170-5.250 GHz

5.725-5.850 GHz

Operating frequency varies by region. Refer to local regulations.

Transmitter Power (EIRP):

5.1 GHz: <23 dBm (CE)

5.8 GHz:

<30 dBm (FCC)

<14 dBm (CE)

<30 dBm (SRRC)

Lowest Latency:

DJI Goggles 3 (Racing Mode): 20 ms with 1080p/100fps

DJI Goggles N3 (Racing Mode): 24 ms with 1080p/100fps

DJI Goggles 2 / Goggles Integra: Less than 35 ms with 1080p/100fps

Latency data represents the minimu latency tested in open environments.

Max Video TransmissionRange:

DJI Goggles 3 / DJI Goggles N3:

FCC: 10 km

CE: 6 km

SRRC: 6 km

Measured in unobstructed outdoor environments. Actual rangee varies based on flightendurance.

Live View Quality:

1080p at 30/50/60/100fps

Communication Bandwidth:

Max 60 MHz

Antenna:

1 antenna, 1T1R

Channels:

Auto Mode and Manual Mode Supported

With DJI Goggles 3 or DJI Goggles N3:

60 MHz: 1 channel

40 MHz: 1 channel

20 MHz: 3 channels

10 MHz: 3 channels

With DJI Goggles 2 or Goggles Integra:

40 MHz: 1 channel

20 MHz: 3 channels

10 MHz: 3 channels

Channel Info:

FCC/SRRC/CE:

60 MHz / 40 MHz:

Channel 1: 5794.5 MHz

20 MHz / 10 MHz:

Channel 1: 5768.5 MHz

Channel 2: 5789.5 MHz

Channel 3: 5814.5 MHz

CAMERA

Image Sensor:

1/2-inch CMOS Sensor

Lens:

FOV: 117.6°

Equivalent Focal Length: 14 mm

Aperture: f/2.8

Focus: 0.6 m to ∞

ISO Rangee:

100-6400 (Auto)

100-12800 (Manual)

Video Resolution:

4K (4:3): 3840×2880@30/50/60fps

4K (16:9): 3840×2160@30/50/60fps

1080p (4:3): 1440×1080@30/50/60/100/120fps

1080p (16:9): 1920×1080@30/50/60/100/120fps

Video Format:

MP4

Max Video Bitrate:

100 Mbps

Color Mode:

Normal Mode

Camera FOV:

Standard

Wide-Angle

EIS (Electronic Image Stabilization):

RockSteady 3.0+

Stabilization function off (supports Gyroflow)

When RockSteady is enabled, only the standard shooting angle is supported.

HARDWARE

Input-Voltag:

3.7-13.2 V

Operating Temperature:

-10°C to 40°C

STORAGE

Built-in :

23 GB

Supported SD Cards:

Not supported

COMPATIBILITY

Supported-Fligh Controller System:

Betaflight 4.3.0 and higher

Supported DJI Goggles and Remote Controllers:

DJI Goggles 3 + DJI FPV Remote Controller 3

DJI Goggles N3 + DJI FPV Remote Controller 3

DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2

Flightcontrol firmware must support the SBUS protocol to use the DJI FPV Remote Controller.

DJI O4 ANTENNA

Weight:

Approx. 0.75g

Length:

80 mm
