3D Printed Eclipson Model B Alaskan Style Bush Plane

(Please note these designs are being reproduced with permission from Eclipson)

(Did you know, if you pay via EFT instead of card, it allows us to invest more into developing kits, workshops & events to grow the hobby!!!)

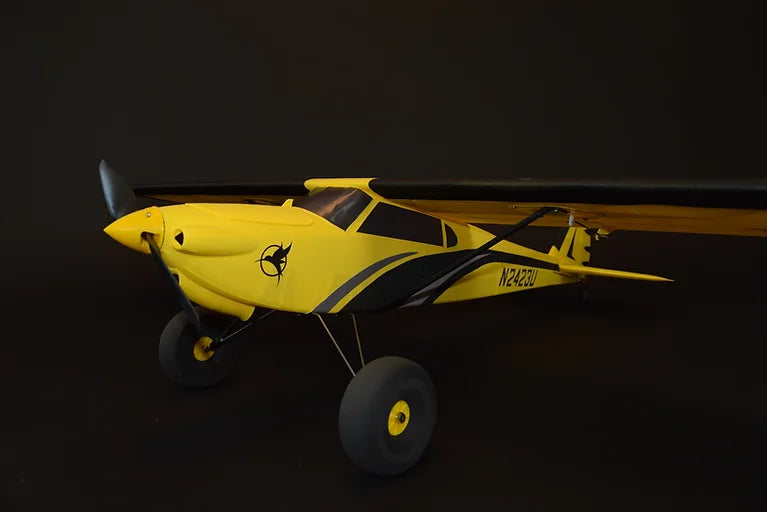

The Eclipson Model B is a classic design inspired by Alaskan bush planes. Its sturdy and durable construction, including large Tundra wheels and a robust landing gear made of steel rods, allows for takeoff and landing in almost any terrain. The addition of wing struts not only enhances the scale appearance, but also provides exceptional strength suitable for aggressive or aerobatic flights. The model's large control surfaces allow for agile maneuvers, while maintaining stability and a low stall speed.

Kit Includes: (lead time 8-10 days)
All 86 3D Printed Parts
Build Video Is Available HERE

Required Electronics & Hardware (Electronic Packs Coming Soon):

• Motor: 2212 1250kv or similar
• ESC: 25-30 amp 3s
• Propeller: 8x6
• Servos: 4 x 9 gram
• Battery: 3s 1200-1500  mah
• Recommended radio: Minimum 5ch
• Pushrods: 3x 1.2mm 50cm
• Steel rod/Piano Wire: 2x 2mm 35cm
• Wheel collars/or dabs of glue: 4x 2.1mm
• Bolt: 4x M3x15 (nuts and washers aswell)
• Bolt: 2x M3x30 (nuts and washers aswell)
• Magnets: 2x 10x5x3mm
• Screws: 34x M2x8mm
• Velcro: 10cm or so
• Glue: Cyanoacrylate (Super Glue)
• Push Rod Connectors(or z bends): 4 units
