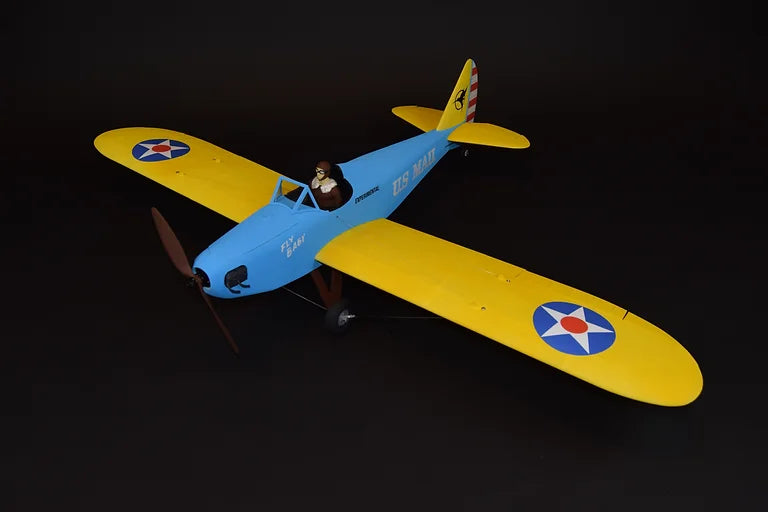

3D Printed Eclipson Fly Baby

(Please note these designs are being reproduced with permission from Eclipson)

The Eclipson Fly Baby is a modern take on the classic Bowers Fly Baby. This iconic aircraft won the Experimental Aircraft Association's design competition in 1962. It was specifically designed for easy assembly in a home garage using basic hand tools, making it accessible for the average person. In our 3D printed RC version, we have stayed true to the original design, including the use of fishing lines to reinforce the wing and landing gear. This provides both a realistic appearance and structural strength without the need for costly carbon fiber tubes. Additionally, the wing is detachable for added convenience.

Kit Includes:
All 71 3D Printed Parts
Build Video Is Available HERE

Required Electronics & Hardware (Electronic Packs Coming Soon):

• Motor: 2212 1250kv or similar
• ESC: 25-30 amp 3s
• Propeller: 8x6
• Servos: 4 x 9 gram
• Battery: 3s 800-1500  mah
• Recommended radio: Minimum 5ch
• Pushrods: 3x 1.2mm 65cm
• Steel rod/Piano Wire: 1x 2mm 25cm
• Wheel collars/or dabs of glue: 5x 2.1mm
• Bolt: 4x M3x15 (nuts and washers aswell)
• Screws: 30x M2x10mm
• Velcro: 10cm or so
• Glue: Cyanoacrylate (Super Glue)
• Push Rod Connectors(or z bends): 4 units
• Rubber Band: 1x 50mm
• Fishing Line: 0.4-0.8mm
• transparent Plastic Bottle for canopy
